THE NEW ERA OF WELLNESS ON WHEELS

Built to adapt, the Bowhead Era™ combines sleek design and unparalleled functionality to create the ultimate mobility solution. Our Fit-For-Life™ system allows seating specialists and users to easily adjust the chair as needs change, all with a single tool.

Our wheelchair is intended to be your steadfast companion, evolving with you through every phase of your life. The Era’s flexibility accommodates changing needs, prioritizing your health and wellness. Embrace new features and adjustments right away, no more waiting years for the right fit. Join Bowhead and be fit for life.

From $7,999.00 USD / $10,999.00 CAD

Close-up of Bowhead 7s caster wheel in blue.
Close-up of carbon fiber Chassis.
Close-up of a 559 Rear wheel.
Close-up of a Bowhead Era wing and casterwheels.

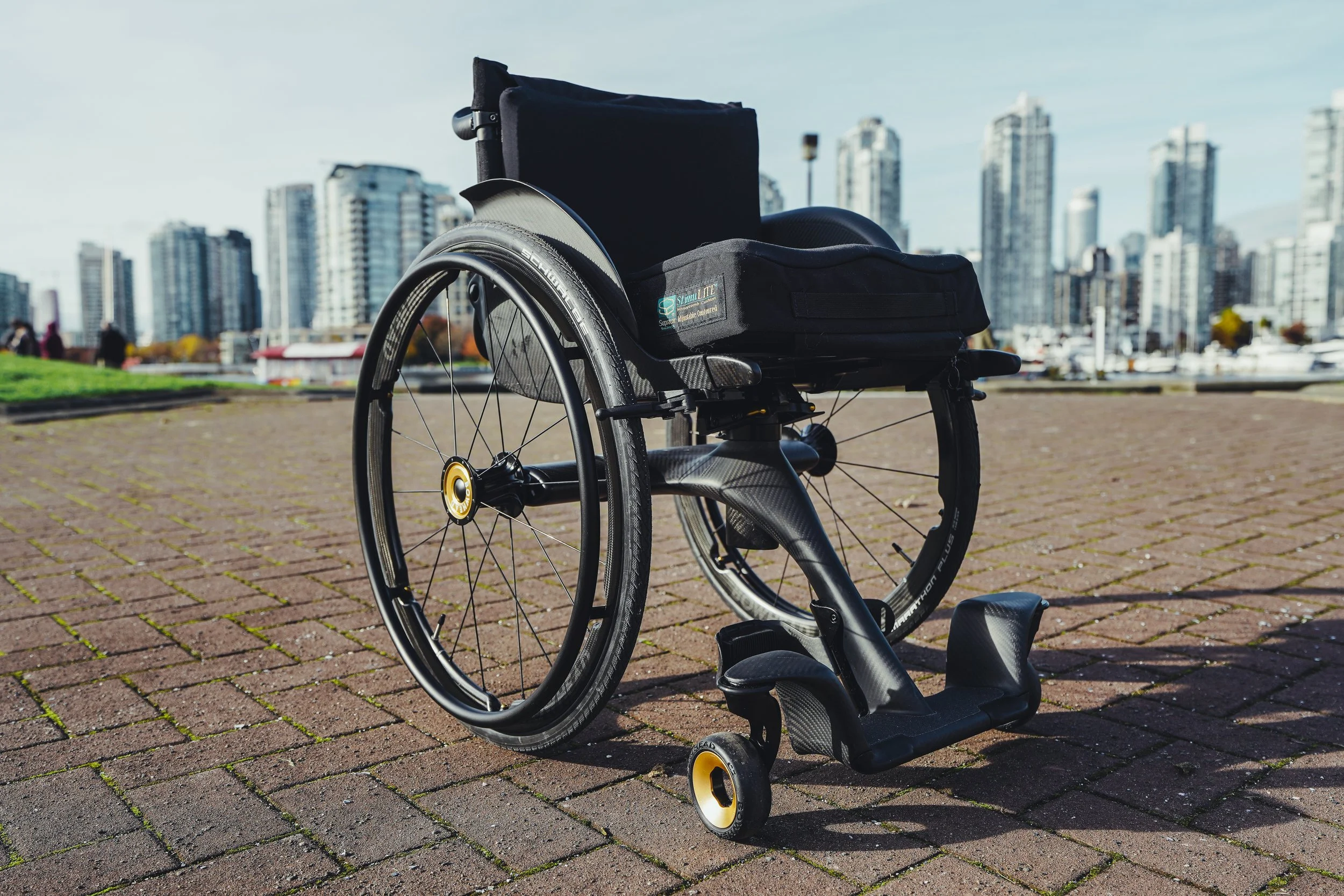

Side view of the Bowhead Era wheelchair.
Close-up of the Bowhead Era 559 rear wheel.
Close-up of a Bowhead Era 7s caster wheel.
Close-up of wheelchair frame and backrest with a focus on adjustment mechanism.

Fit-For-Life™

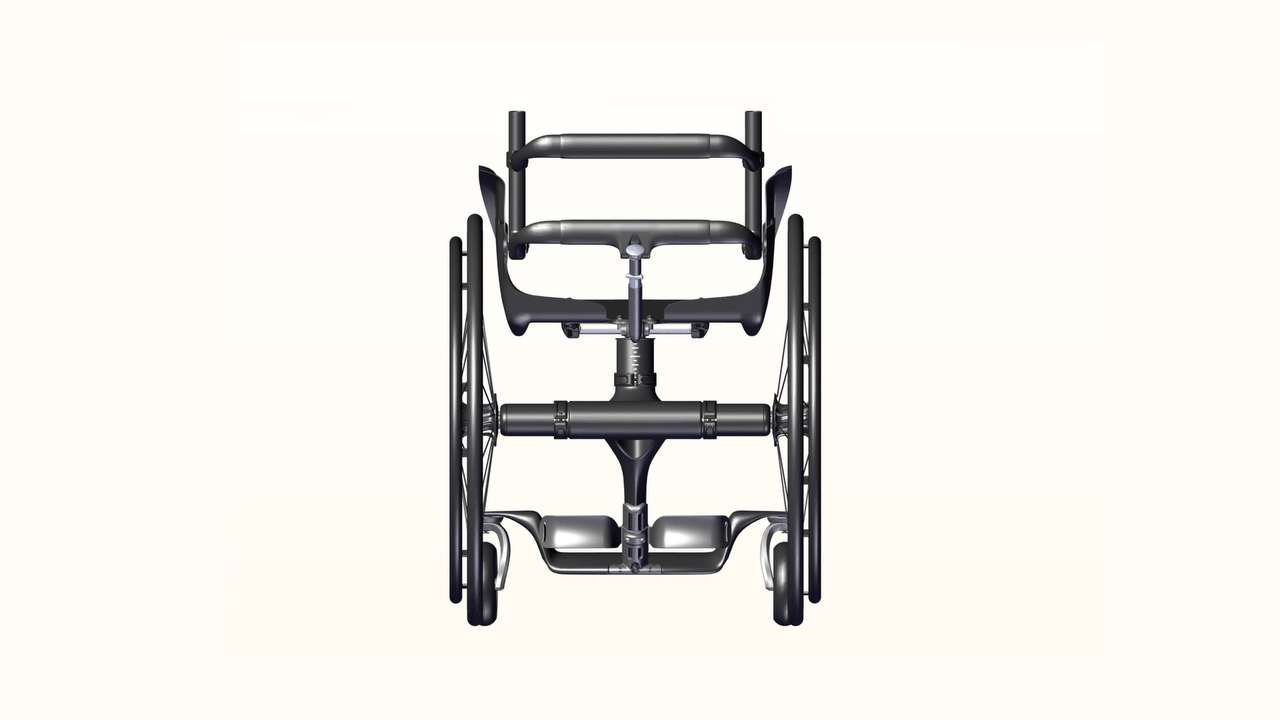

  • Front view of the Bowhead Era showcasing width adjustment ability.

    Width Adjustment

    The Era’s dynamic frame adjusts easily to accommodate body changes and situations. This customizable fit ensures optimal comfort and support, meeting the user’s needs over time.

  • Up & Down Adjustment

    Up & Down Adjustment

    The Era’s seat can easily adjust up or down for various needs. New cushion, shoes, or wearing heels? The Era accommodates it all. Changing rear wheel size or tires? You decide, and the Era responds.

  • Center of Gravity Adjustment

    Center of Gravity Adjustment

    Users can achieve optimal ergonomic and functional fit with 4” of continuous adjustment to perform ADLs safely and effectively. For quick fixes on stability or tighter turning radius, use the rear or forward receiving location for the rear axle.

High-tech wheelchair with labeled parts, featuring large rear wheels, smaller front wheels, and a cushioned seat. The design appears modern and innovative, with emphasis on mobility and comfort.

ERA CONFIGURATION

Click through the list below to learn more about each component:

    • This system comes on both Configuration 1 and 2 and allows for removal of seat in one motion.

    • Made of Carbon Fiber and seamlessly sleek. With durability to match that of downhill mountain bikes

    • 3x wing/footrest bumpers as well as 2 independently rotating bumpers above the caster fork. These add protection for the chassis during vehicle transfers and assist in opening heavy doors or re-directing from doorways

    • Configuration 1: 5’’ MBL wheel with hub (plastic/composite)

    • Configuration 2: 4’’ Bowhead 7s hubless wheel (Aluminum)

    • Configuration 1: Spinergy Wire Wheel – 559/25’’

    • Configuration 2: Bowhead Carbon Fiber 559/25’’

    • Configuration 1: Plastic Brakes

    • Configuration 2: Aluminum Brakes

    • Configuration 1 and 2: Black Aluminum Anodized included

    • Additional Options Comprise: Stainless Steel TC small profile, SS TC Max profile, or Quadro w/ Anti-slip Coating

    • High strength and corrosion resistant, black

    • Configuration 1 and 2: On-the-Fly angle adjustment between 80-100deg and sling backrest. Standard backrest pivot tubes that support mounting nearly any third party backrest to accommodate individual’s preference.

    • Configuration 1 and 2: Titanium Torsion bar provides vibration and minor impact relief

BUILT FOR YOU. BUILT FOR LIFE.

The Bowhead Era is built around five core modules that, when assembled, deliver unmatched performance and adaptability.

SEATING SYSTEM

Bowhead’s seating system supports healthy posture with adjustable features. It offers a seat width range of 12-19.5’’ in 3 distinct sizes with 2.5’’ of adjustability, ensuring a perfect fit. An on-the-fly angle-adjustable backrest and standard backrest canes accommodate various back support needs. ErgoCurve sideguards and a solid carbon fiber base provide support and pressure relief.

The patented removable seating mechanism allows users to separate the seat assembly from the chassis, reducing weight, size, and increasing storage flexibility. It also allows for seat exchange designed purposefully for work, play, leisure, therapy, and recreation.

The Era’s performance hub located between the seat and chassis provides unparalleled functionality never seen before.

With 4 inches of continuous COG adjustment, customizable seat angle blocks, a Titanium torsion flex bar, plus the ability to interchange this system, this Hub allows for a range of performance.

PERFORMANCE HUB

Close-up of a bicycle's front wheel and fork with a focus on the suspension and attachment components.

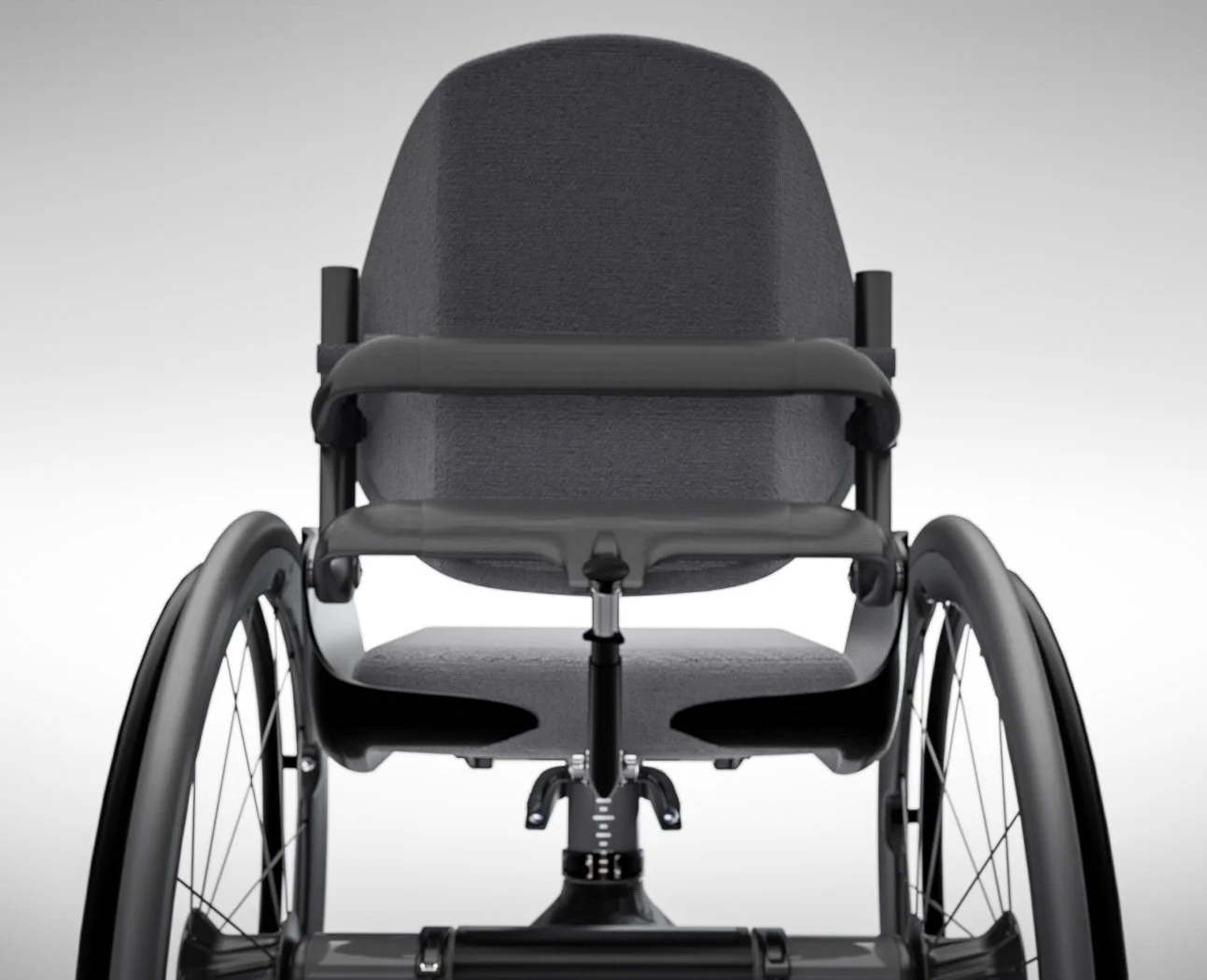

The Era’s seat post allows for 4 inches of continuous seat height adjustment eliminating concerns about incorrect measurements or fit. Its design ensures you’re never welded to a single configuration allowing easy adjustment for different cushions, footwear, or seat angle freely. Precision adjustment is aided by graduations.

SEAT POST

Rear view of a modern wheelchair with curved armrests and a cushioned backrest.

The Era is constructed of aerospace grade carbon-composite providing the strongest, most durable frame designed and built to withstand life’s wear and tear. The chassis supports the functionality of all other systems and features an integrated footrest with front and rear bumpers, interchangeable rear wheel size and camber, and a compact lightweight design. Sadly, for our engineers most of this masterpiece ‘disappears’, letting you be you.

CHASSIS

Modern design wheelchair on a gray background, featuring large rear wheels and sleek frame.

Roll into a new Era of health with the Bowhead 559 carbon fiber rear wheels and Bowhead 7s Hubless casters.

The Era chair is completed with custom-designed carbon fiber rear wheels that are lightweight, fully serviceable, and easily personalized to suit your style. The front caster wheels feature a hubless design, utilizing a large-diameter bearing meaning no more gross hair build-up and reducing maintenance from every 2 weeks to only twice a year.

WHEELS

Side view of a modern wheelchair with grey seat and large rear spoked wheel featuring yellow hub caps.

CERAKOTE

Transform your Bowhead Era wheelchair with custom Cerakote colors to match your personality.

Details and pricing available in the Era quote form, fill one out today!

Specifications

  • Overall Width: 22.5”- 28.7” (57.1 cm - 73.0 cm) w/ camber

    Overall Length: 28.5” - 30.5” (72.4 cm - 77.5 cm)

    Seat Width: Adjustable 12-14.5” (30.5 - 36.8 cm), 14.5-17” (36.8 cm - 43.2 cm) or, 17-19.5” (43.2 cm - 49.5 cm)

    Seat Depth: Modular: 14”, 16”, or 18” (35.6 cm, 40.6 cm, or 45.7 cm)

    Seat-to-Floor Height: Adjustable: 16” to 21” (40.6 cm to 53.3 cm) continuous

    Seat Angle: Modular: 5°, 7°, or 11°

    Camber: Modular: 0° or 2°

    Backrest Angle: Adjustable: 80° to 100° (in chair adjustment)

    COG (Center of Gravity): Adjustable: 4” / 10.2 cm continuous

    Wheelbase: Adjustable: 3” (1” increment) (7.62 cm [2.5 cm increment])

  • Frame Material: Carbon Fiber

    Maximum Weight Capacity: 240lbs / 110kg​ (with all accessories and personal items included)

    Total Weight of Chair (without rear wheels, cushion, accessories): Around 14 lbs (6.4 kg), varies depending on model configuration and chair size.

    Chair Transport weight can further be divided into 2 when the seat is removed from the frame = 6.2 lbs – 7.8 lbs (2.8 kg –3.5 kg).

    Total Weight of Chair (with rear wheels): Range between 20.8 lbs – 22.7 lbs (9.5 kg – 10.3 kg) depending on wheel and tire selection.

    Ground Clearance: Wing 1: 85mm, Wing 2: 110mm,

    Coming soon - Wing 3: 136mm, Wing 4: 162mm

    Rear Wheel Size: 559/25”

    Coming soon - 540/24” and 584/27”

    Caster Wheel Size: 7s: 4’’ or MBL: 5’’ ​

    Please note that individual wheelchairs will have unique specifications due to custom configuration ensuring proper fit and function. For instance, the overall width, length, and weight of the chair will change depending on various factors including but not limited to wheel size, tire type, camber and hand rim selection.
